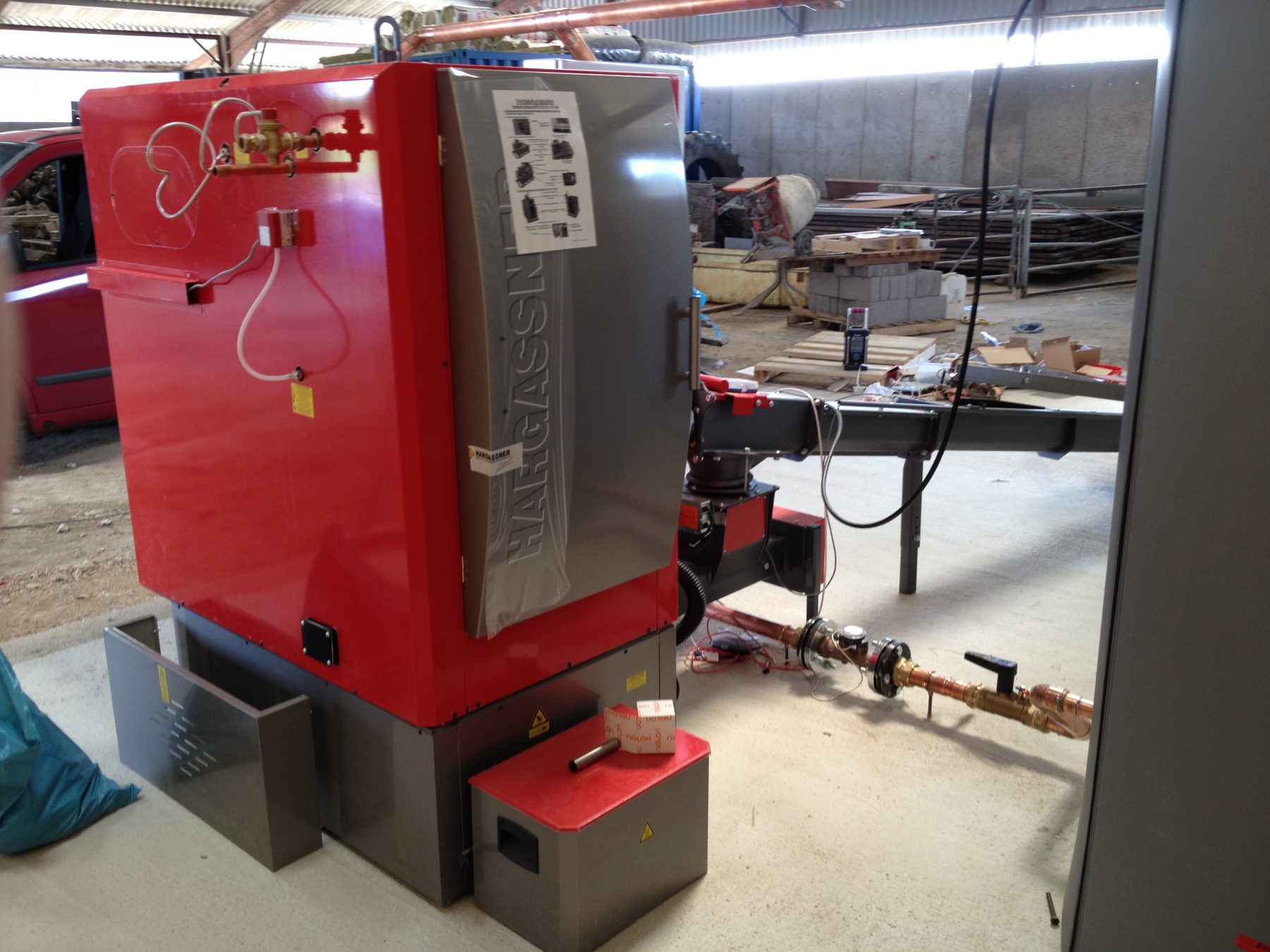

Hargassner ECO HK Wood Chip Boiler

Further Information and Data Sheets

• Hargassner Eco HK Wood Chip Boiler 150-225kW Brochure
• Hargassner Eco HK Wood Chip Boiler 70-120kW Brochure

ECO HK Wood Chip Boiler

Boasting unrivalled 95% efficiency is one of the worlds leading wood chip biomass boilers.

Full refractory-lined combustion chamber with flame concentration jets for optimum post-combustion

The refractory combustion chamber guarantees high combustion temperatures through optimum heat storage (also at part-load), minimises the ignition procedure and reduces emissions.

Through the exact and contactless firebed height monitoring system with sensors, the most effective combustion condition depending on fuel quality is detected. Your heating system is always working with the needed heat output at optimum combustion values.

The advantages

1. Lambda sensor with fuel-quality detection
2. Fully refractory-lined high performance combustion chamber
3. Fully automatic heat exchanger cleaning system
4. Fully automatic ash extraction system
5. Best ease of use through SMS module
6. Extended warranty
7. Superb Factory-Service for Hargassner customers

1. Fully refractory-lined underfeed stoker
2. Flame concentration plate
3. Boiler heat exchanger
4. Turbulators
5. Fly ash separation
6. Flue pipe
7. Lambda sensor
8. Calorifiers for thermal discharge safety device
9. Drive motor for ash extraction and boiler cleaning
10. Ash extraction auger
11. Automatic boiler cleaning system
12. Ash box









1. Boiler
2. Fan
3. Primary air
4. Preheated secondary air
5. Automatic Ignition
6. Stoker auger
7. Drop shaft with burn-back flap
8. Servomotor for burn-back flap
9. Drive motor for stoker auger

10. Drive motor for extraction auger
11. Extraction auger
12. Ground agitator with spring blades
13. Agitator gearbox
14. Electronic control unit
15. Safety lid
16. Stoker auger temperature sensor
17. Storage room temperature sensor
18. Storage room service door
